FaxFinder Configuration Guide: 3Com NBX PBX Systems

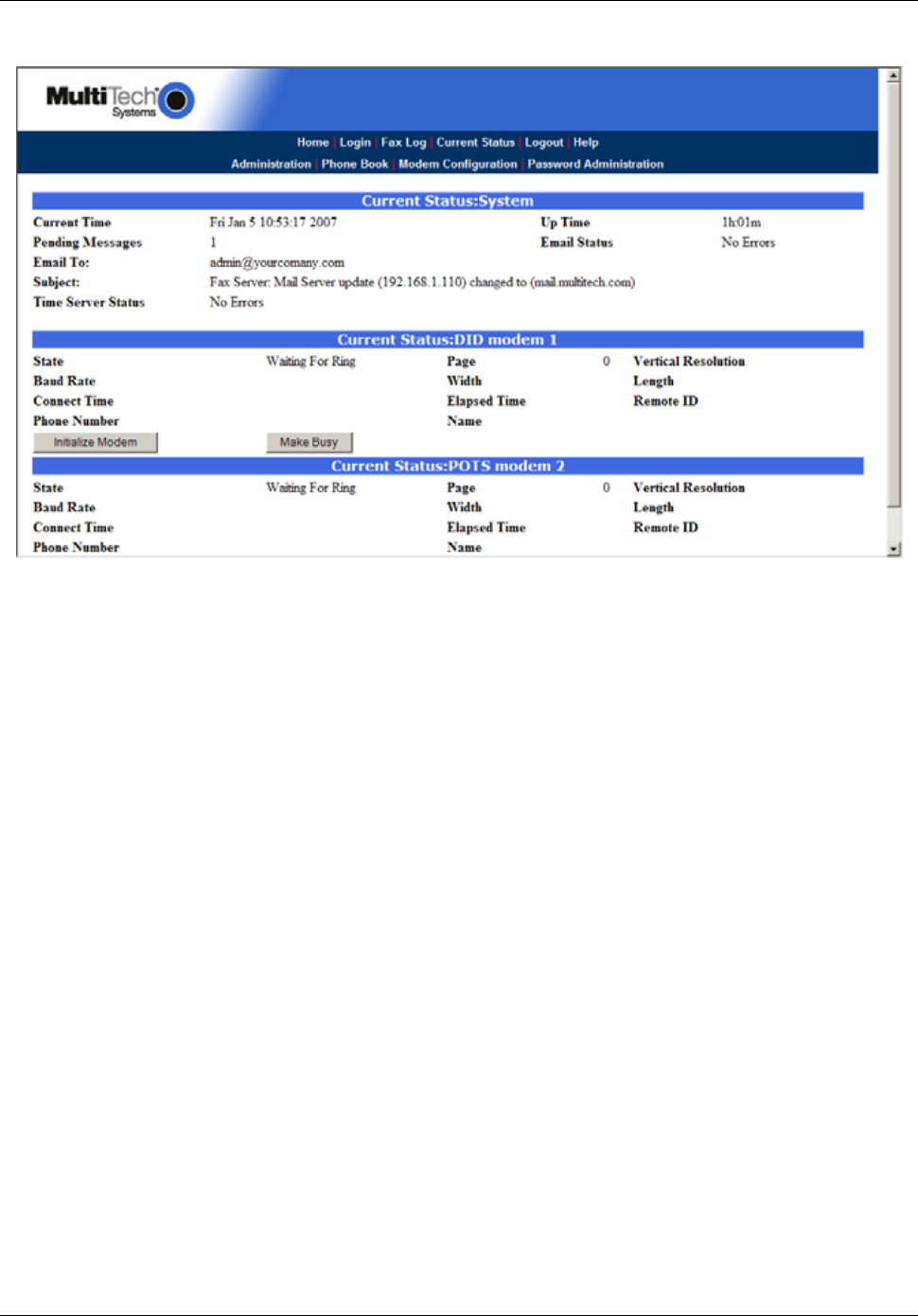

5. Click on Current Status: there should be no errors for email status and time server status.

6. Connect FaxFinder to 3com CO/Line port and extension port.

a) Connect the RJ-12 end of the phone line provided to the DID port on the FF110.

b) Connect the RJ-11 end of the phone line provided to the CO/Line port configured on the 3COM

NBX.

c) Connect a phone line from the FF110 LINE port to the 3COM NBX analog extension port.

Please refer to FaxFinder user guide for advanced feature descriptions.
