8. Define an action to be taken if the alert responds to the above profiles (see

3.2.2, “Alert Profiles” on page 99).

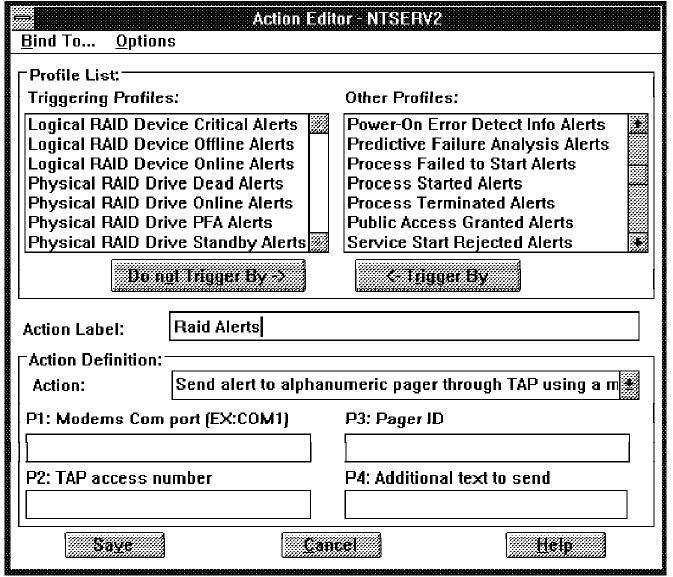

Figure 126. Alert Manager - Action Editor

3.2.2 Alert Profiles

Alert profiles are objects that help the user better manage the alerts received by

the system. In TME 10 NetFinity many alert profiles are predefined. Open the

Profile Editor by clicking on Profiles and browse through the profiles. If you do

not find the profile that exactly matches your needs, you can either create a new

profile or change an existing one.

There are two possibilities to define a profile:

•

By alert conditions

•

By other profiles

To define a profile by alert conditions is the same as defining an alert by alert

condition (see 3.2.1.1, “Defining Alert Forwarding by Alert Conditions” on

page 97).

To define a profile by other profiles:

1. Open the Alert Manager.

2. Click on Profiles.

3. Click on New to add a new profile.

4. Choose Define By... from the top menu and select Profile Composition.

5. Select one or more profile from the right window and click on Include to

select the profiles.

Chapter 3. Alert Flows 99
