DSU ProxyServer User Guide

MTPSR2-201

WAN Device Configuration

You can configure an external modem connected to WAN Port 2 of the ProxyServer by selecting the

WAN Device Configuration command from Start | Programs | ProxyServer 2.10 | Wan Device

Configuration (Windows 98/95 or Windows NT) or from the ProxyServer 2.10 program group

(Windows 3.1x).

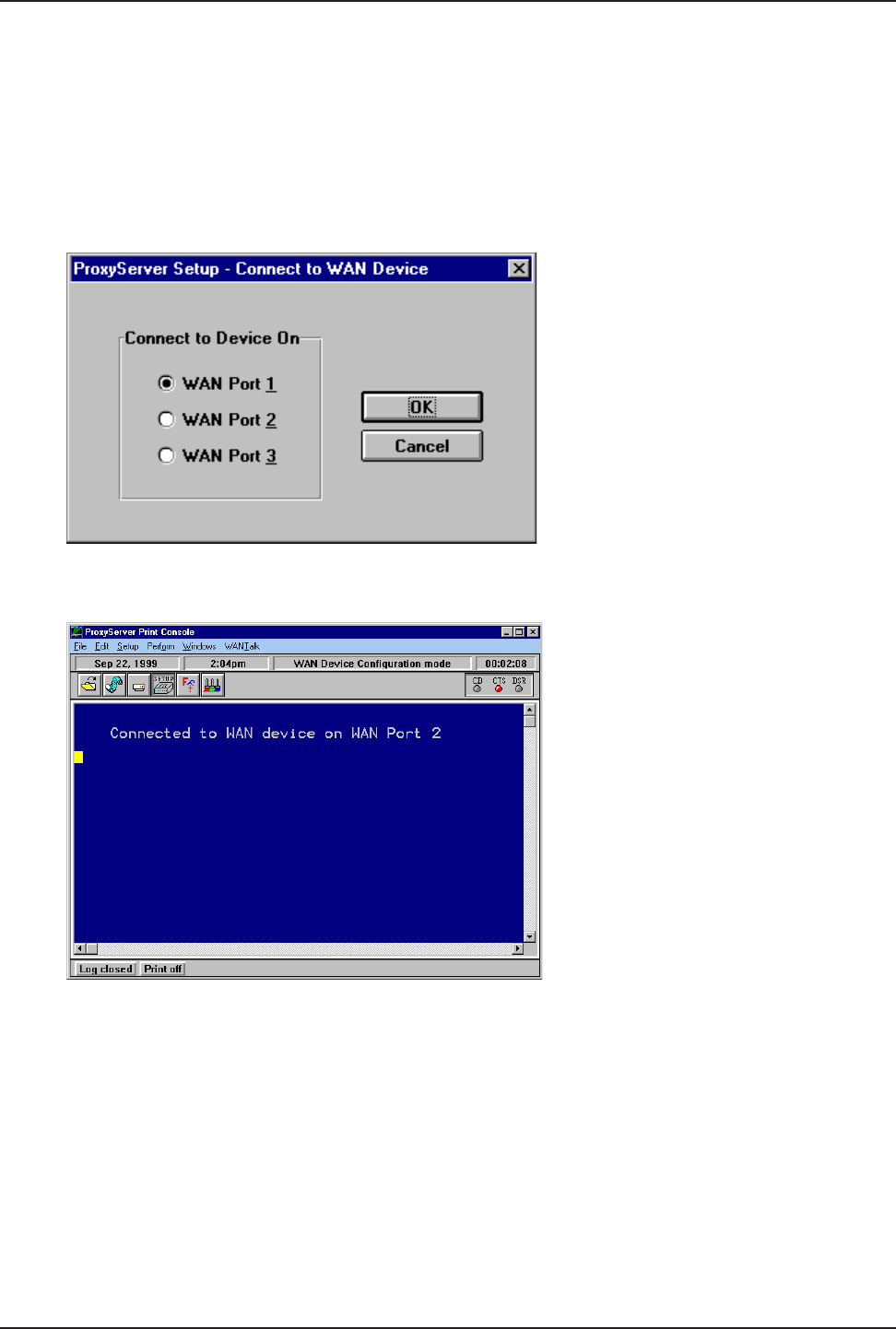

The ProxyServer Setup - Connect to WAN Device screen is displayed, overlaid on the Print

Console screen.

Select WAN Port 2, then click OK and the ProxyServer Print Console screen indicates you are

connected to WAN Port 2 and can now enter AT commands.
