TECHNOLOGY | 802.15.4 / SUB-GIG

TECHNOLOGY | ANTENNAS

TECHNOLOGY | BLUETOOTH

TECHNOLOGY | CELLULAR

TECHNOLOGY | GPS / GNSS MODULE

TECHNOLOGY | WI-FI

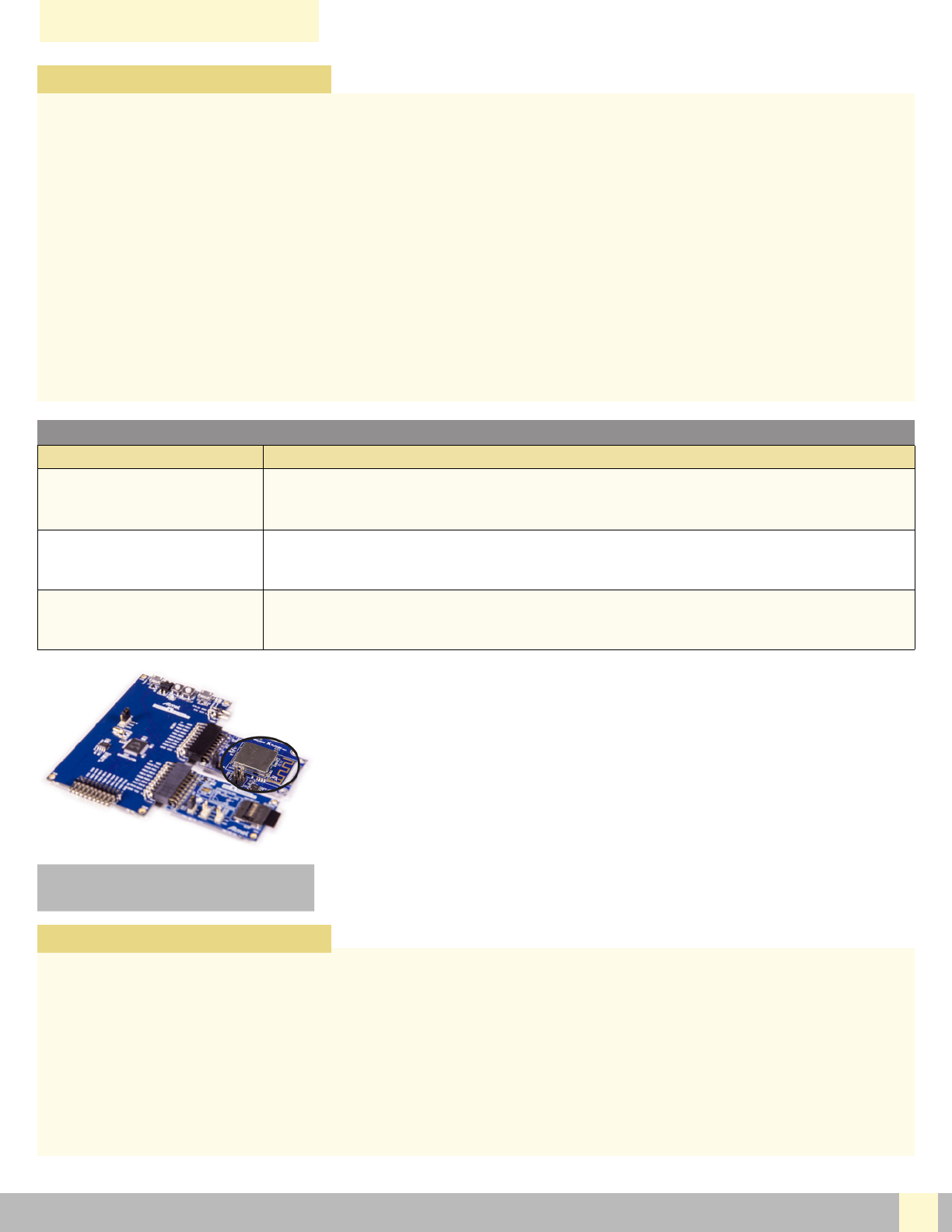

Figure 3: ATWINC1500-XSTK

Xplained Pro starter kit

ATWINC1500-XSTK Xplained Pro Starter Kit

The Atmel® ATWINC1500-XSTK Xplained Pro starter kit is a hardware

platform for evaluating the Atmel ATWINC1500 low cost, low power

802.11 b/g/n WiFi network controller module. Supported by the Atmel

Studio integrated development platform, the kit provides easy access to

the features of the ATWINC1500 and explains how to integrate the device

in a custom design. The Xplained Pro series of evaluation kits include an

on-board Embedded Debugger, and no external tools are necessary to

program or debug the SAMD21 host MCU that drives the ATWINC1500.

The Xplained Pro extension kits offer additional peripherals to extend the

features of the board and ease the development of custom designs.

• Atmel ATWINC1500 module

mounted on ATWINC1500 Xplained

Pro Extension

• ATSAMD21-XPRO host MCU

board for driving the ATWINC1500

Xplained Pro Extension

• Digital I/O WING extension board

for sensor and SD-card input to host

MCU

• Embedded debugger (EDBG) for

programming SAMD21 host MCU

• Virtual COM-port interface to host

MCU via UART

• Wired ﬁrmware updates for

ATWINC1500 module via virtual

COM-port interface

• Atmel Data Gateway Interface (DGI)

to host MCU via SPI and TWI

• ATECC108 CryptoAuthentication

device connected to host MCU

• Two extension headers

• Three possible power sources

• External power

• Target USB

• 32KHz crystal

• 16MHz crystal

• Supported with application

examples trough Atmel gallery

KEY FEATURES

Power Architecture and Consumption

The WINC1500 uses an innovative power architecture that delivers very low power consumption along with high

performance. This approach reduces the number of external components and optimizes your bill of material.

The WINC1500 has several Devices States:

• PROVISION: Receive and Transmit data anytime; send beacons as Wi-Fi SoftAP

• IDLE LISTEN: Receive data via TIM/DTIM; transmit data anytime

• IDLE: Not receiving or transmitting data. Remains associated with AP for poll

• SUSPEND: Not receiving or transmitting data; no PS polls; completely disconnect from the AP

Accelerating RF Design

To help accelerate design development, Atmel offers the WINC1500 as a single-chip module for fast integration, and as an

XPRO wing that is compatible with any existing Atmel Xplained PRO evaluation board.

BENEFITS

PART SELECTOR TABLE

PART NUMBER DESCRIPTION

ATWINC1500A-MU-T Single 802.11 b/g/n chip, 5X5 QFN

ATWINC1500-MR210PA Certiﬁed Module with ATWINC1500A-MU chip and PCB antenna

ATWINC1500-XSTK

Starter kit including XPlained Pro D21 board, ATWINC1500-XPRO extension board demonstrating IoT setup

with LED control and temperature measurements sent wirelessly through the Internet to the mobile device
