Chapter 3 – Configuring the PC

Multi-Tech Systems, Inc. RF550VPN User Guide 14

If Your Operating System Is Windows NT:

1. Click Start | Settings | Control Panel.

2. Double-click the

Network icon.

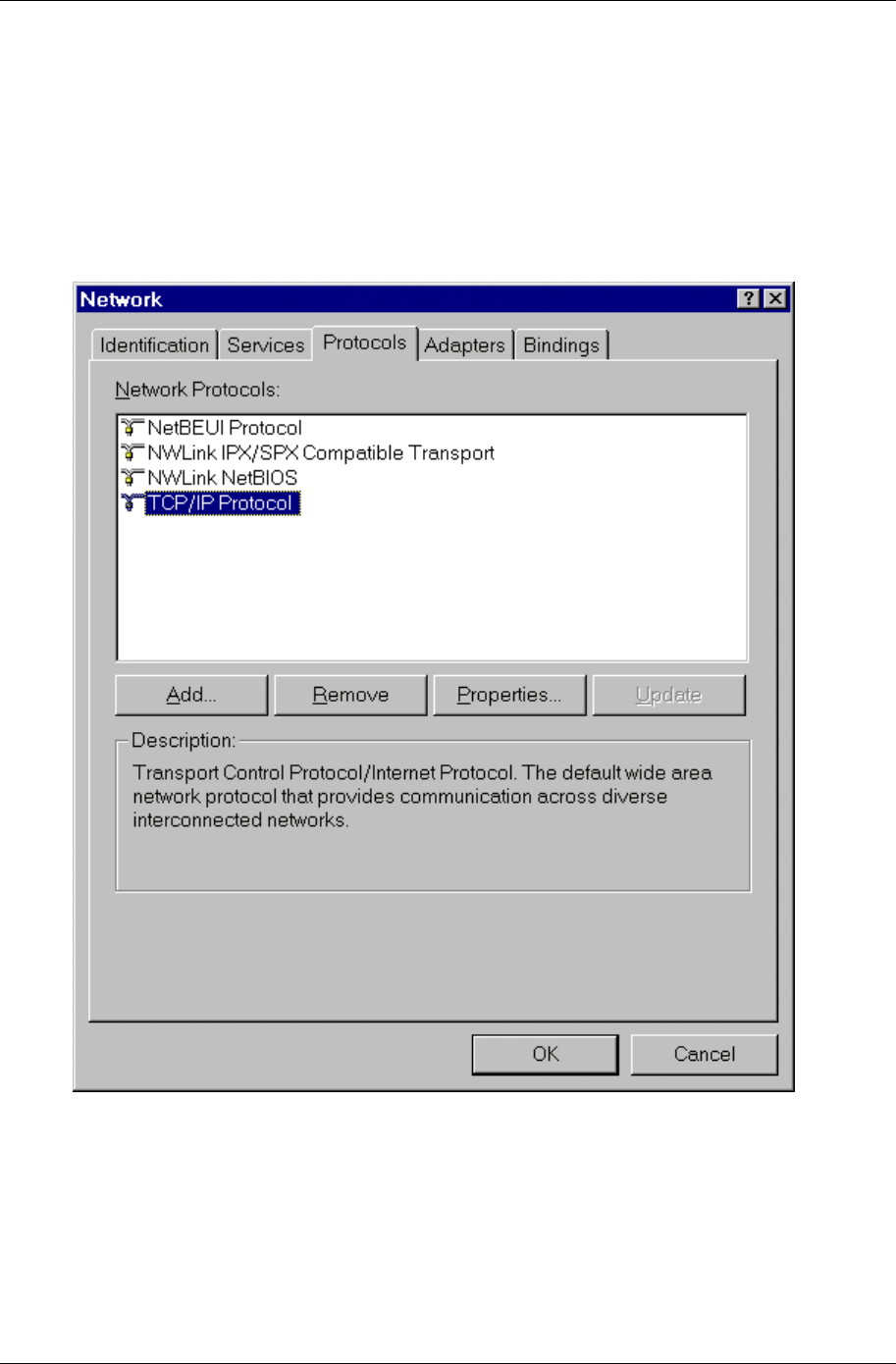

3. The Network dialog box displays. Click the Protocols tab. Select the TCP/IP protocol line

associated with your network card/adapter. If TCP/IP is not listed, see Appendix B for

installation directions.

4. Click the Bindings

tab.
