Chapter 6 – Managing the RouteFinder Using a Web Browser

Multi-Tech Systems, Inc. RF550VPN User Guide 35

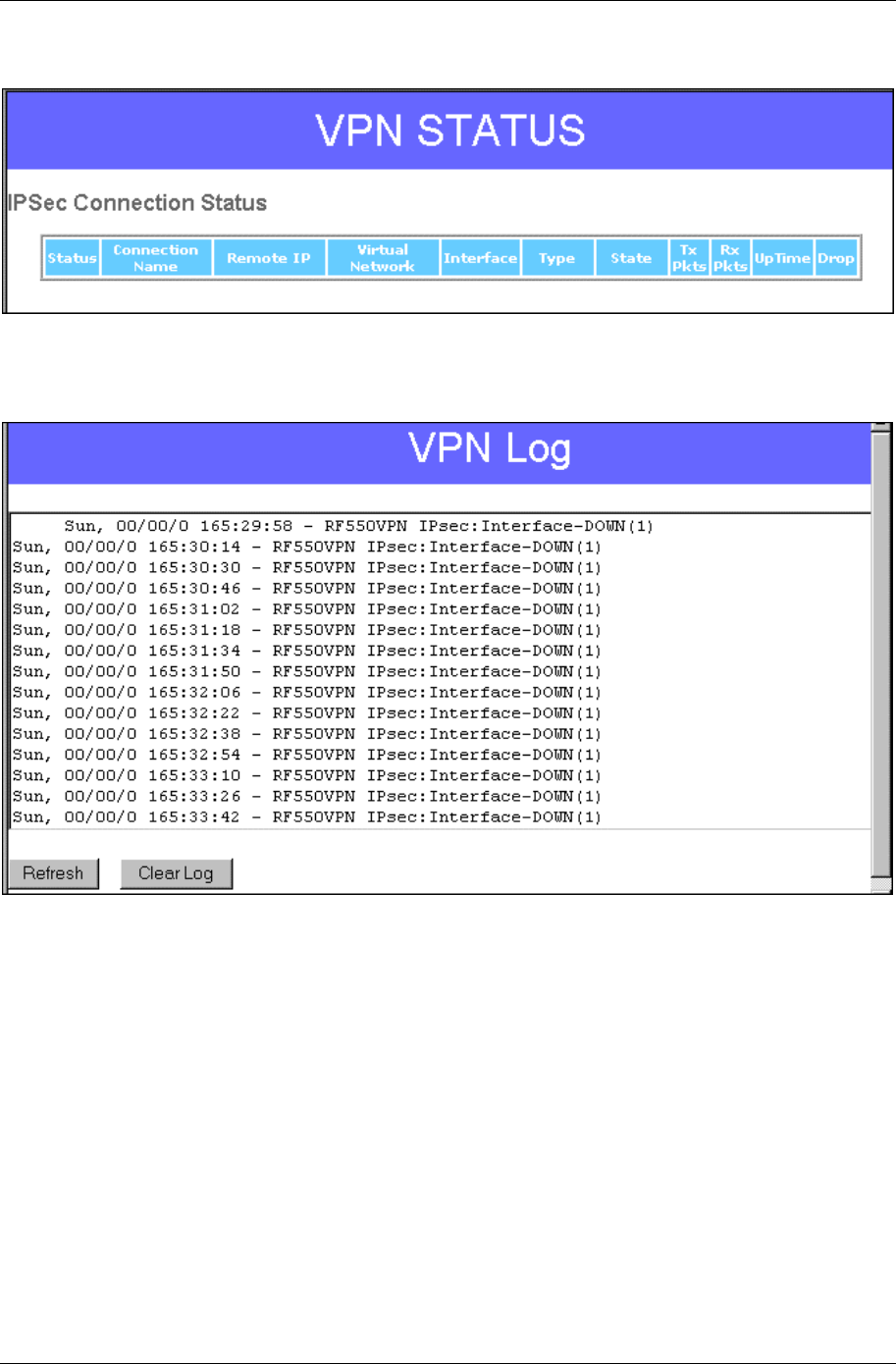

VPN Status – Click this button to view the IPSec connection status.

DHCP Log – Click this button to view the current DHCP client information. The information is

displayed on the screen as illustrated on the Device Status screen above.

VPN Log – Click this button to view the current VPN activity. You will see a screen similar to this one.
