132
MANAGING TASKS & DATA • DATA BROWSER
7 Beaver Brook Road, Littleton, MA 01460 • 978-486-0086 • www.burk.com

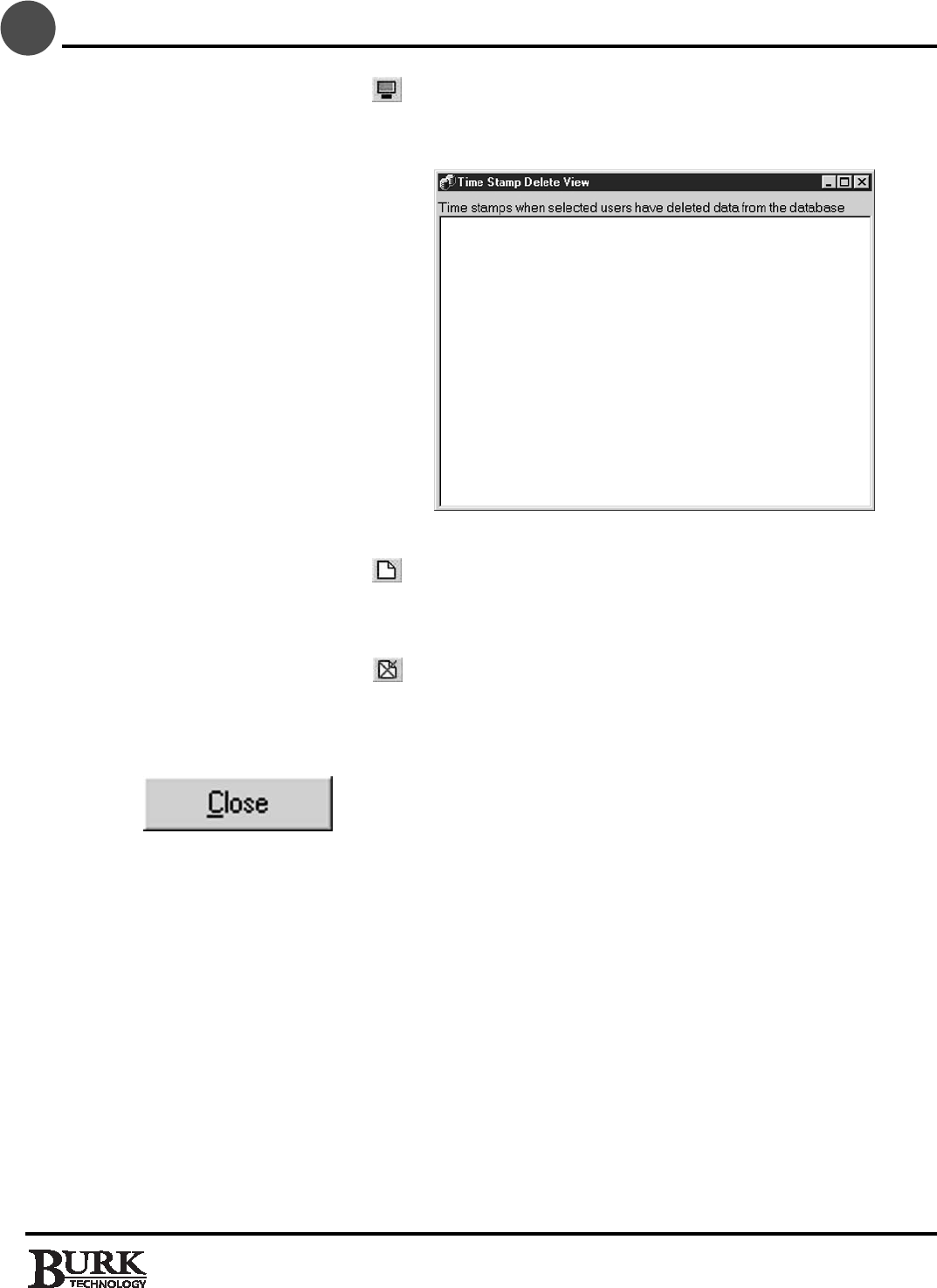

View Monitor File allows the Administrator to see who has
deleted information from the database, with the timestamp
of when it occurred.
View Error Log File opens the error log for review. This
should only be used with the assistance of a technical
support representative.
Delete Error Log File allows an Administrator to
permanently delete the error log. Use sparingly and only if
everything has been working well or as instructed by
support personnel.
Click Close to close the Administrative Tools window.
Time Stamp File
