Chapter 8 – SocketModem GPRS (MTSMC-G)

Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342C) 120

MMCX Plug

The SocketModem requires an MMCX plug to connect to an antenna.

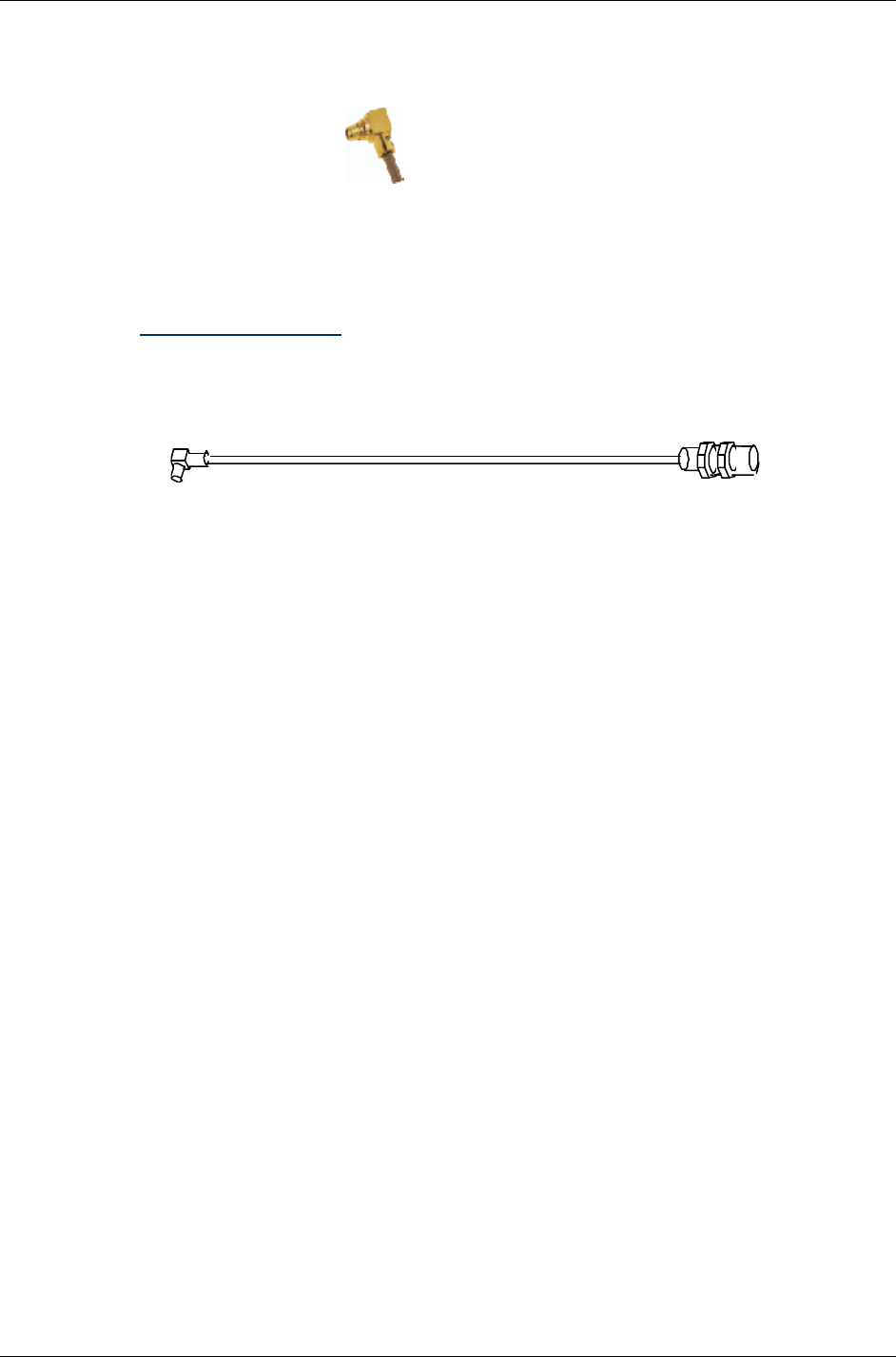

MMCX Connector Example (right angle type)

MMCX / SMA Adapter

A small MMCX / SMA adapter can be ordered, for example, from:

Amphenol

http://www.amphenol.com/

Order No: 908-31100

Antenna Cable

An optional 6” antenna cable can be ordered from Multi-Tech Systems, Inc.

6-Inch Antenna Cable – SMA Jack to MMCX Plug
